New Surplus, Duplex Mattei Rotary Instrument Air Compressor Package

Description

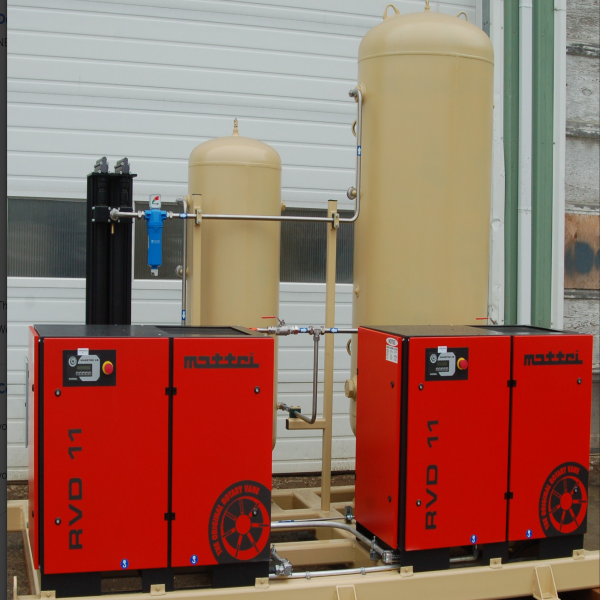

NEW SURPLUS duplex instrument air compressor package

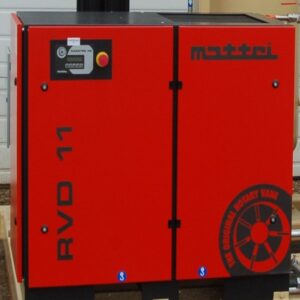

• Two (2) Mattei model RVD11H, 15 HP, single stage rotary air compressors each rated for 54.7 CFM @ 150 PSIG
• Maestro XB microprocessor controllers
• One only 120-gallon 200 PSIG MAWP, ASME code vertical wet air receiver with automatic drain valve, pressure relief valve and pressure indicator
• One only Xebec Model MAD55 modular heatless regenerative air dryer
• One only 0.01 micron coalescing pre-filter with automatic drain
• One only 1 micron particulate after filter
• Three (3) valve block and bypass around the complete dryer and filter assembly
• One only 400-gallon, 165 PSIG MAWP, ASME code vertical dry air receiver with safety valve and pressure indicator
• Structural steel skid
• All piping is to ASME code B31.3
• Process piping is cold-formed carbon steel tubing construction
• All electrical and end devices are rewired to a terminal strip in the control panel
• Full set of GA, P&ID and electrical drawings

This package was manufactured in 2022, but was never put into service

We have four (4) identical unity available
