Duplex Mattei Rotary Instrument Air Compressor Package
$25,500.00 USD
Description

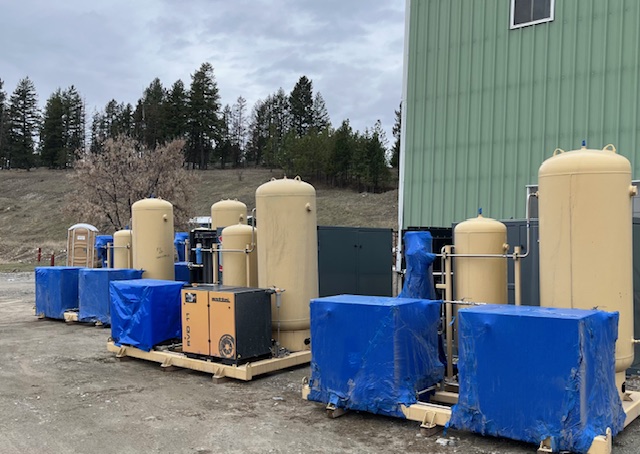

NEW SURPLUS, duplex instrument air compressor package.

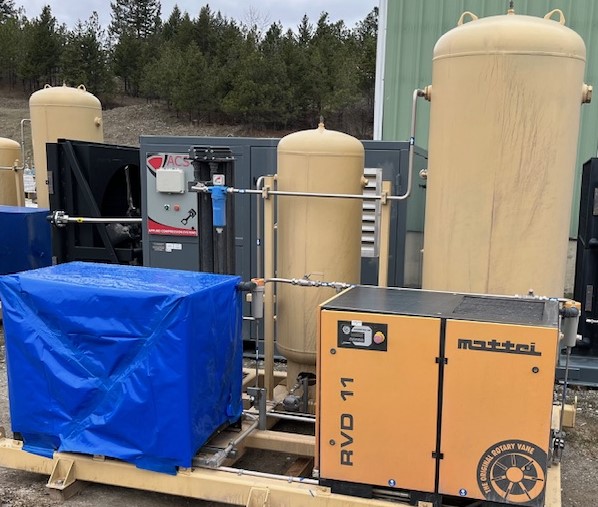

- Two (2) Mattei model RVD11H, 15 hp, single stage rotary air compressors each rated for 54.7 CFM @ 150 PSIG
- Maestro XB microprocessor controllers
- One only 120-gallon 200 PSIG MAWP, ASME code vertical wet air receiver with automatic drain valve, pressure relief valve and pressure indicator
- One only Xebec Model MAD55 modular heatless regenerative air dryer
- One only 0.01 micron coalescing pre-filter with automatic drain
- One only 1 micron particulate after filter
- Three (3) valve block and bypass around the complete dryer and filter assembly
- One only 400-gallon, 165 PSIG MAWP, ASME code vertical dry air receiver with safety valve and pressure indicator
- Structural steel skid
- All piping is to ASME code B31.3
- Process piping is cold-formed carbon steel tubing construction
- All electrical end devices are prewired to a terminal strip in the control panel
- Full set of GA, P&ID and electrical drawings
This package was manufactured in 2022, but was never put into service.
We have four (4) identical units available.
Additional information
| Size | 15 HP X 2 |
|---|---|
| Brand | Applied Compression Systems/Mattei |
| Model | RVD11H |
| Condition | New Surplus |
| Warranty | Gold Seal Guarantee |
