Fully Packaged Rotary Screw Instrument Air Compressor Package With Dryer
$110,000.00 USD
Description

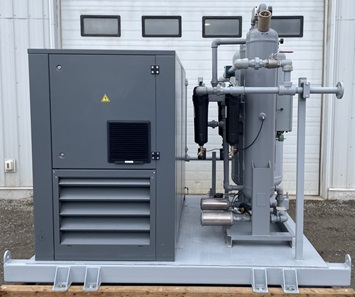

NEW SURPLUS rotary screw instrument air compressor package including:

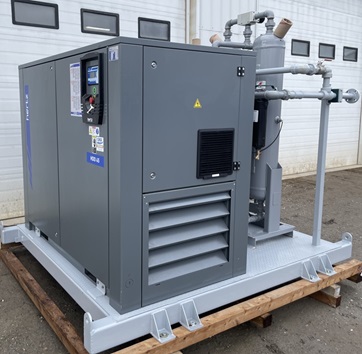

- 60 HP Hertz model HDD45 direct-drive, single-stage, air-cooled, oil-lubricated rotary screw air compressor rated for 247 CFM @ 150 PSIG.
- Wye-Delta motor starter
- Integral oil cooler and after-cooler
- Acoustic compressor enclosure
- 120 gallon 200 PSIG, ASME code vertical wet air receiver with 1/8″ corrosion allowance, drain valves and instrumentation.

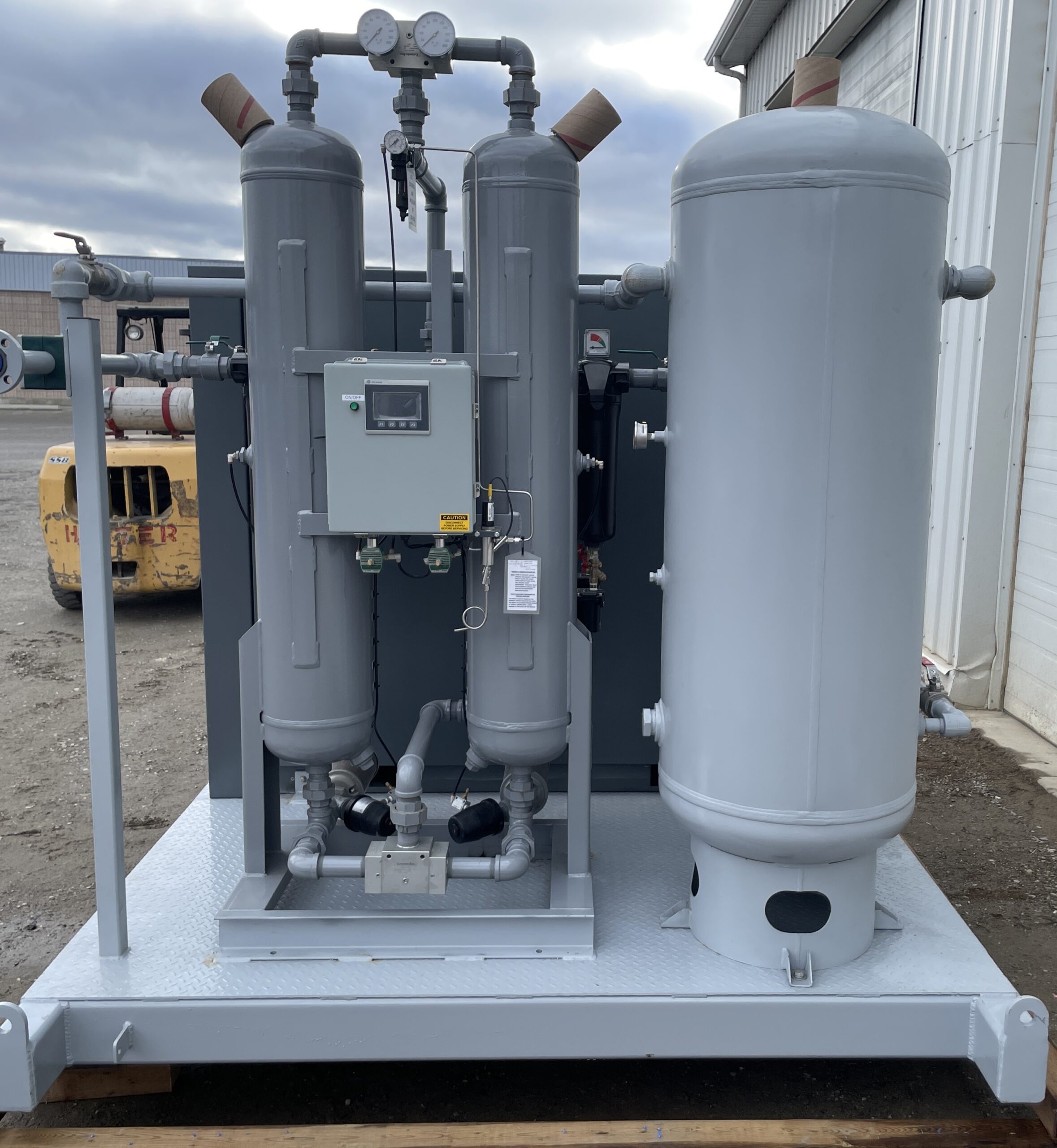

- Aircell model AHLD-250-E dual tower heatless regenerative compressed air dryer. Rated for -40 degrees F pressure dew point.
- Duplex pre-filters with bypass
- Duplex after-filters with bypass
- Stainless steel control tubing
- All piping to ASME Code B31.3
- All components are mounted on a common skid
- Full set of construction drawings
- Full set of quality control documentation
This compressor package was manufactured in 2023 for a project that was cancelled and is ready to ship
Additional information
| Size | 60 HP |
|---|---|
| Brand | Applied Compression Systems/Hertz |
| Model | HDD 45 |
| Condition | New Surplus |
| Hours | Zero |
| Warranty | Contact Us |
