HP Pdc Model Pdc-4-1250-1250 Two-cylinder Single-stage Diaphragm Gas Compressor Package

Description

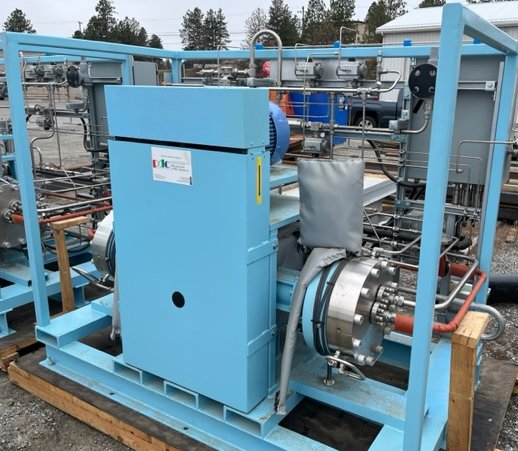

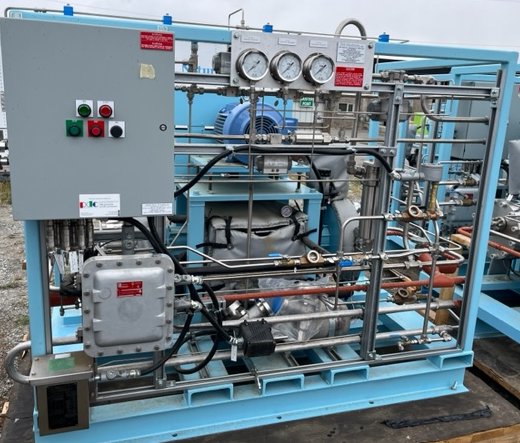

NEW SURPLUS 15 HP PDC model PDC-4-1250-1250, two cylinder, single-stage diaphragm gas compressor package including:

• Class 1 Div 2 BCD compressor control panel
• Class 1 Div 2 BCD motor starter
• Control voltage transformer
• Gauge panel
• Structural steel baseplate
• Stainless steel tubing
• Suction check valve
• Discharge check valve
• Leak detection system
• Oil pressure relief valve
• Water-cooled tube-in-tube aftercooler
• 15 HP TEFC electric motor, (Class 1 Div 2 BCD rated)
• V-belt drive with fully enclosed OSHA belt guard
• Parts and operating manual
• P&ID drawing
• General arrangement drawing
• Wiring schematic
• Manufactured for a project in 2015 but never installed or placed into service

Our Stock Number 11718

PDC Job Number 3873-0815

Original Design Conditions:

• Suction pressure:  185 – 885 PSIG
• Discharge pressure:  335-1100 PSIG
• Flow rate:  50 – 250 SCFM
• Gas:  Methane

Approximate Capacities (*)

• 21 SCFM (34 Nm3/hr) with 72.5 PSIG (5 BarG) suction pressure and 335 PSIG (23 BarG) discharge pressure
• 42.4 SCFM (68 Nm3/hr) with 145 PSIG (10 BarG) suction pressure and 335 PSIG (23 BarG) discharge pressure
• 62.3 SCFM (100 Nm3/hr) with 217.5 PSIG (15 BarG) suction pressure and 335 PSIG (23 BarG) discharge pressure
• 84 SCFM (135 Nm3/hr) with 290 PSIG (20 BarG) suction pressure and 335 PSIG (23 BarG) discharge pressure

(*) Capacities are approximate only and will vary with actual operating conditions.
