HP Leroi Single-stage Rotary Screw Biogas, Feed Gas Compressor Packages (three Available)

Description

NEW SURPLUS 600 HP LeRoi Model LG30152H51(E)(P) single-stage rotary screw biogas, feed gas compressor packaged by Applied Compression Systems Ltd in 2021.  Fabricated for a project that was cancelled and ready to ship.

We have (3) three packages available.  Price is per package

Nominal Capacity: 2881 cu. meters/hr (1696 CFM) at 135 PSIG discharge pressure with 2 PSIG suction pressure.  Units are suitable for other operating conditions.  Contact us for details.

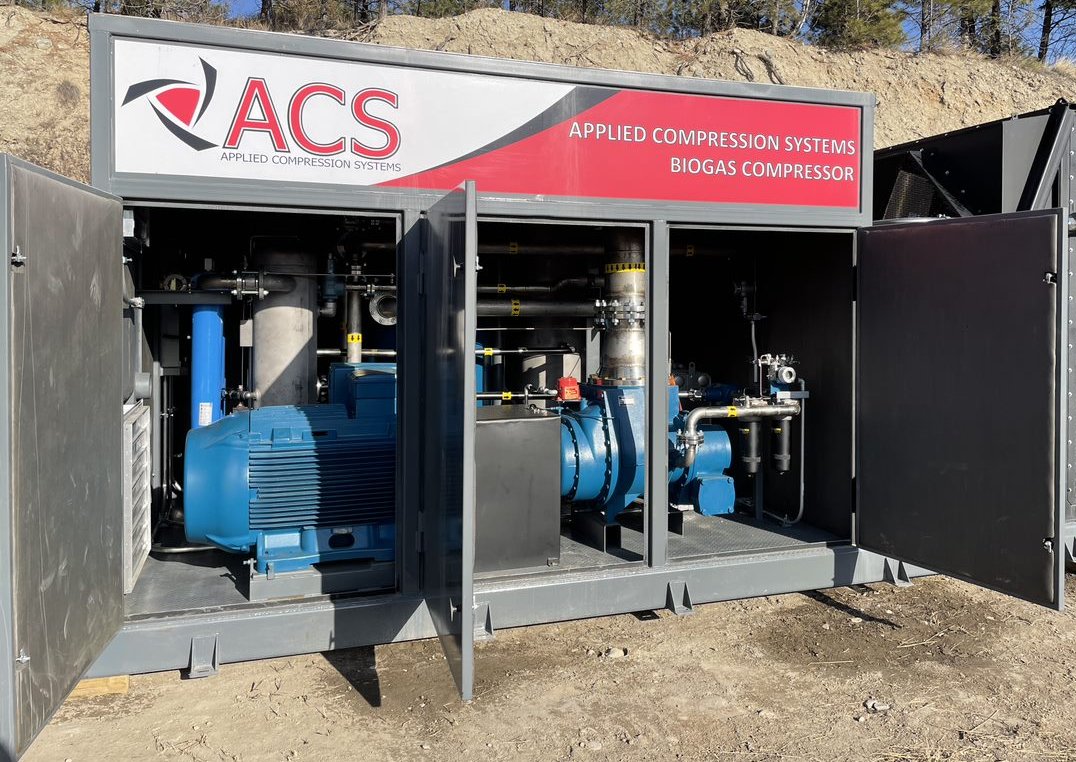

Each package consists of the following:

• LeRoi Model LG3015H51(E)(P) single-stage, oil-injected rotary screw compressor
• 600 HP 460/3/60 TEFC electric motor
• Class 1 Div 2 Electrical classification
• 304 SS process piping
• 304 SS cooler assembly
• 304 SS inlet separator with level controller and drain valve
• 304 SS discharge separator with level controller and drain valve
• Dual coalescing filters with auto drain valves
• Recycle control valve
• Free-standing electrical control cabinet with variable speed drive, fuses and breakers (General Purpose enclosure)
• ACS Evolution XC-AB compressor control panel with Allan-Bradley PLC and tough-screen HMI

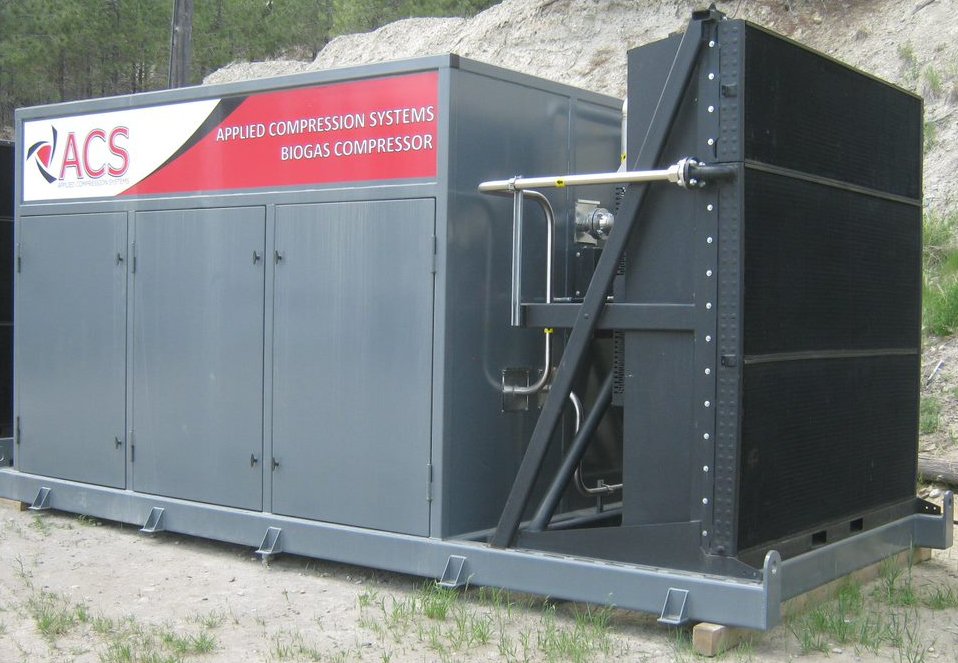

• Weather-proof insulated enclosure
• Price includes start-up supervision (Buyer pays travel and sustenance costs)
• Package caries a one (1) year warranty
• We also have three (3) matchingbooster gas compressor packages available.  Contact us for details
